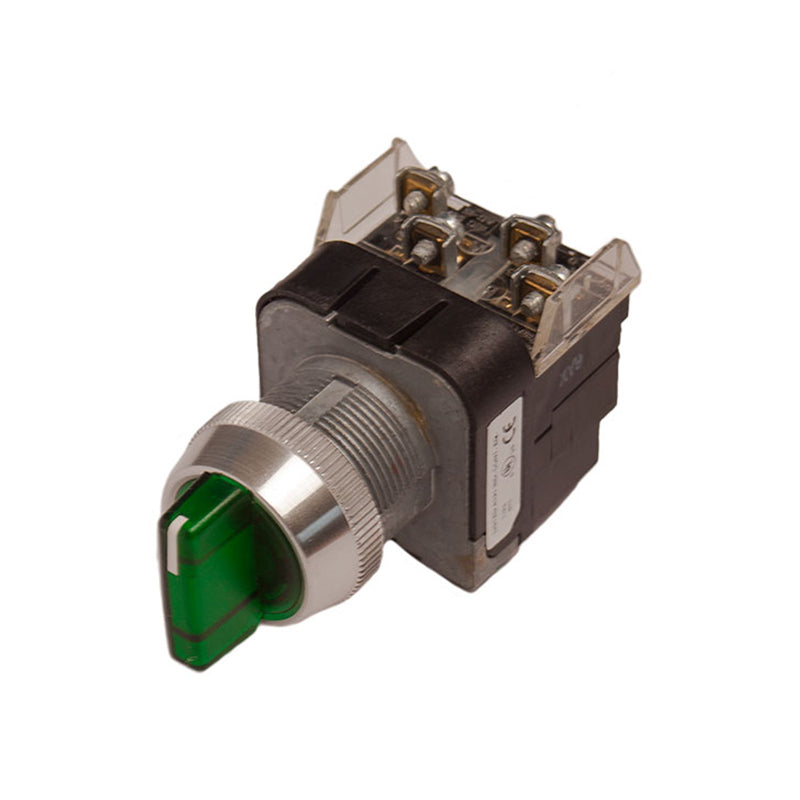

ALLEN BRADLEY | 30 MM SELECTOR SWITCH, GREEN, ILLUMINATED, 3 POSITION | 800T16JG2KB7AX

Allen-Bradley 800T Series Green 3 Position Illuminated Selector Switch, 30 MM, Standard Knob, Maintained , 1NO 1NC

Enclosure: Metal, NEMA 4, 13

Item Name: Selector Switch

Size: 30 MM

Mounting: 30.5 MM Hole

Environmental Conditions: Storage Temperature: -40 To 185 DEG F, Vibration: 10 To 2000 HZ, Humidity: 50 - 95%, Shock 1/2 Cycle Sine Wave For 11 MS Less Than Or Equals To 25 G (Contact Fragility) And No Damage At 100 G

Color: Green

Actuator: Standard Knob

Operating Temperature: -40 To 131 DEG F

Voltage Rating: 120 VAC

Wire Size: 18 - 14 AWG

Frequency Rating: 50/60 HZ

Contact Configuration: 1NO 1NC

Action: Maintained

Contact Rating: Minimum: 24 MA At 24 V, Maximum: 10 A AC, 2.5 A DC

Operating Cycles: Electrical: 1000000 At Maximum Rated load, 200000 At Maximum Rated load (Logic Reed), Mechanical: 1000000 MIN

Dielectric Strength: 2200 V For 1 MIN, 1300 V For 1 MIN (Logic Reed)

Number Of Steps: 3

Type: 800T Series, Illuminated
