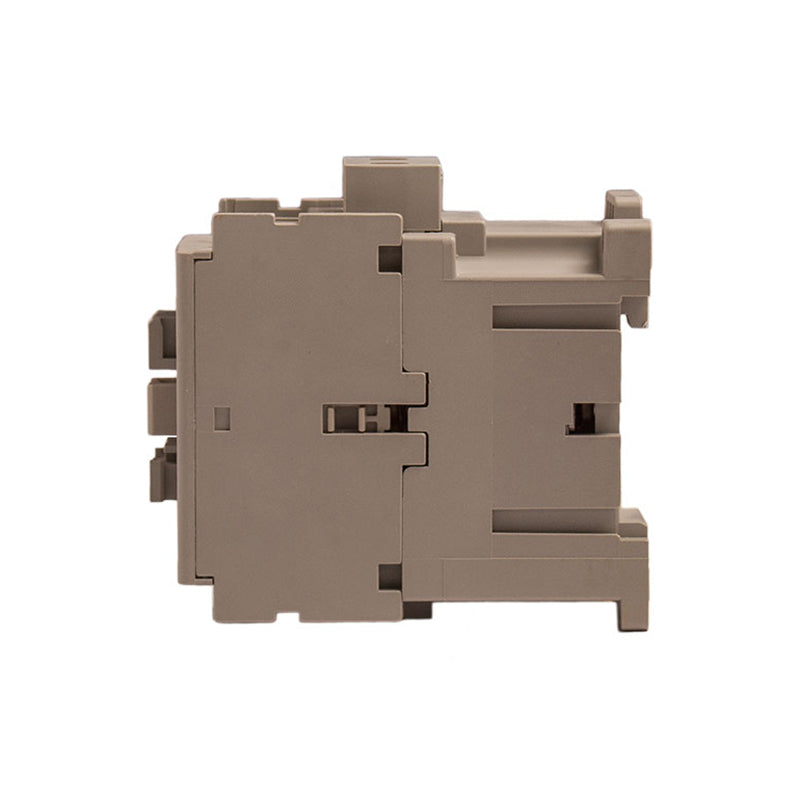

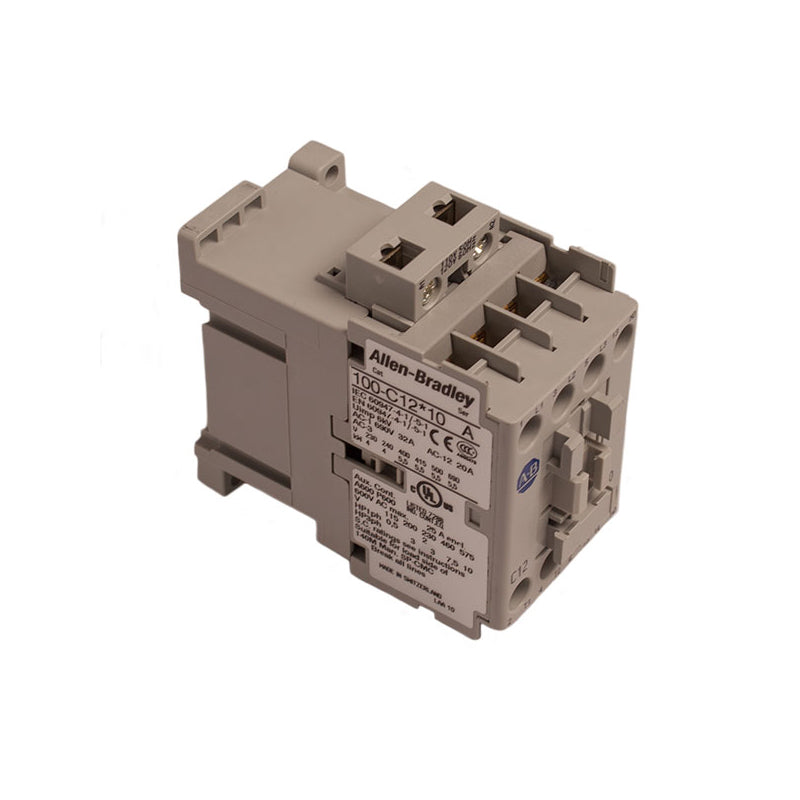

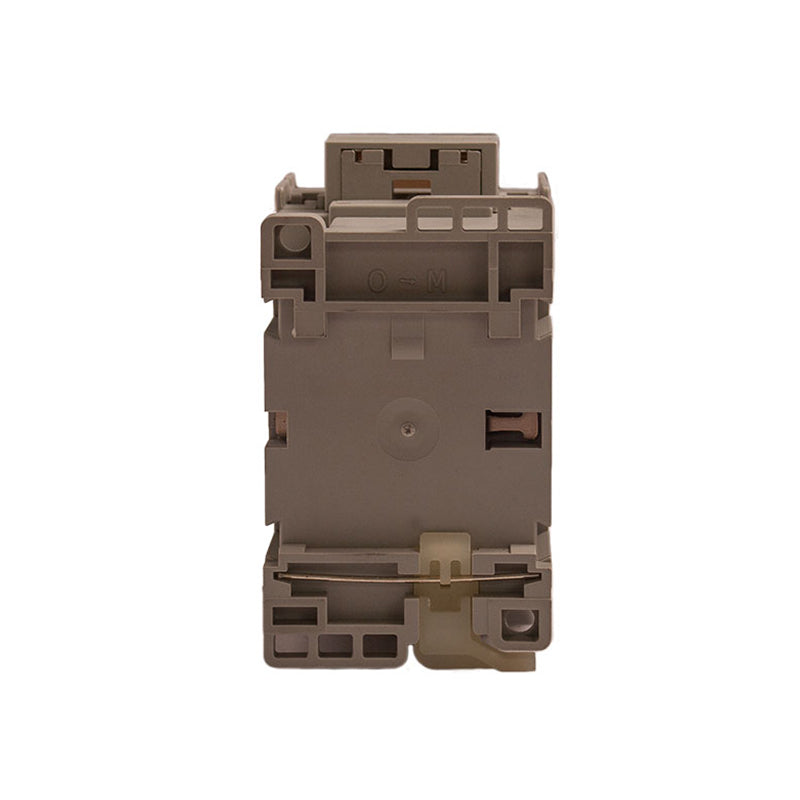

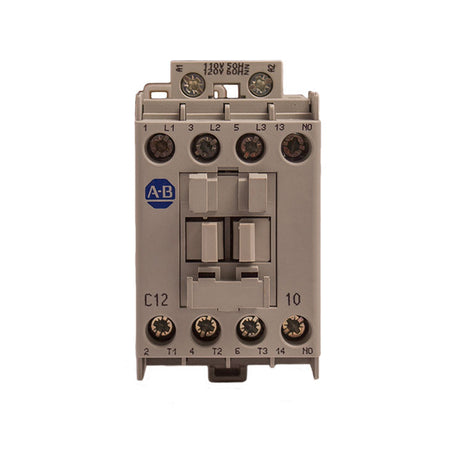

ALLEN BRADLEY | CONTACTOR, 12 AMP, 1 N.O. | 100-C12D10

Wattage: 3-Phase (50 HZ):5.5 KW At 690 V

Enclosure: IP2X

Number Of Poles: 3

Type: 100-C Series

Mounting: 35 MM DIN Rail

Environmental Conditions: Storage Temperature:-55 To 80 DEG C, Resistance To Shock:IEC 60068-2-27, Resistance To Vibration:IEC 60068-2-6, Maximum Altitude Of Installation Site:2000 NN Per IEC 60947-1, Climatic Withstand:IEC 60068-2-1/-2/-30

Rated Impulse Voltage Withstand: 6 KV

Voltage Rating: 690 VAC At 50/60 HZ, 440 VDC

Contact Configuration: 1NO

HP Rating: 1-Phase (60 HZ):1/2 HP At 115 V, 2 HP At 230 V; 3-Phase (60 HZ):3 HP At 200/230 V, 7-1/2 HP At 460 V, 10 HP At 575 V

Maximum Load Current: AC-3:12 A, AC-1:32 A

Coil Voltage: 110 VAC At 50 HZ, 120 VAC At 60 HZ

Connection: Screw Terminal

Operating Temperature: -25 To 60 DEG C
