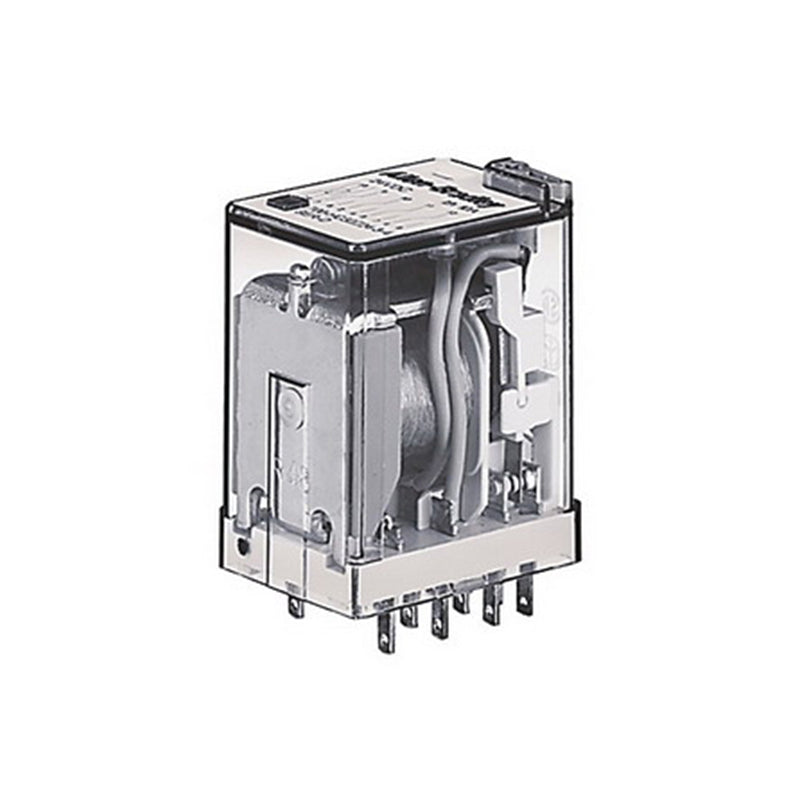

ALLEN BRADLEY | RELAY WITH LED, 4PDT, 120VAC | 700HC24A1-4

Item Name: Relay With LED Pilot Light

Type: Miniature Square Base Blade Terminal

Coil: 120 VAC

Contact Configuration: 4PDT

Contact Rating: Inductive: 15 A, 1/8 HP At 120 VAC, 7.5 A, 1/3 HP At 240 VAC, Resistive: 7 A At 30 VDC, General Purpose: 7 A At 277 VAC

Number Of Poles: 4

Enclosure: IP20, Transparent Dust Cover

Contact Material: Silver

Frequency Rating: 50/60 HZ

Size: 1.46 IN Height X 1.09 IN Width X 0.82 IN Depth

Insulation Voltage: UL/CSA: 300 V, IEC: 250 V

Withstand Voltage: Pole To Pole: 2000 V, Contact To Coil: 4000 V

Color: Transparent

Operating Cycles: Mechanical (AC/DC): 20000000/50000000, Electrical: 100000 Minimum

Temperature Rating: -30 To 55 DEG C

Environmental Conditions: Storage Temperature: -55 To 85 DEG C, Altitude: 2000 M

Coil Consumption: AC Coils: 2.2 VA Inrush, 1.3 VA Sealed, DC Coils: 1 W
