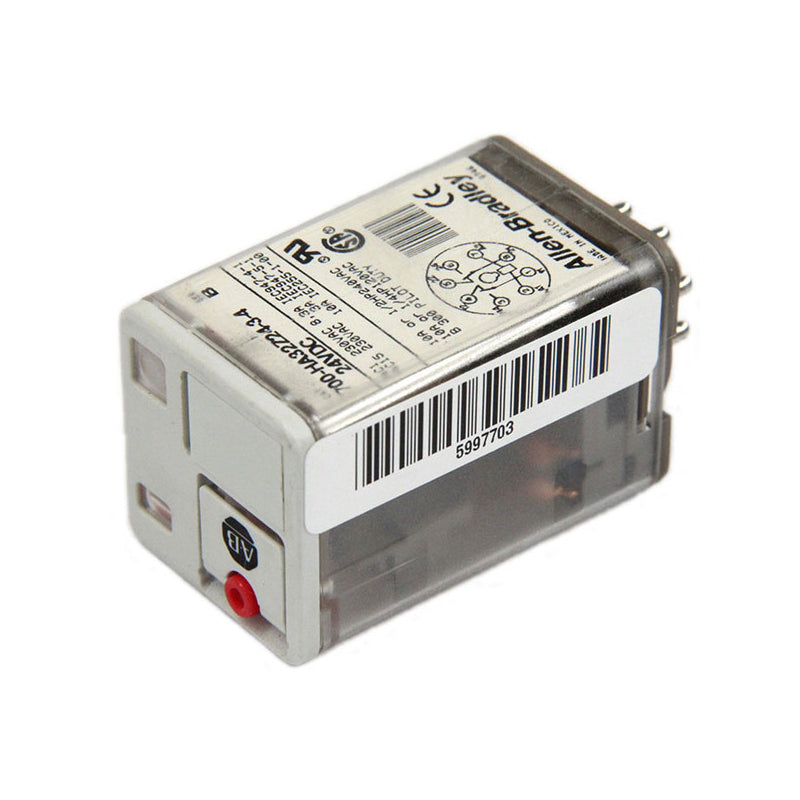

ALLEN BRADLEY | TUBE BASE RELAY, 8 PIN, 10 AMPS, 24 VOLTS, 2 POLES | 700HA32Z24

Allen-Bradley 700-HA32Z24 General Purpose Tube Base Relay, 24 VDC, DPDT

• 24VDC coil
• DPDT, 10A, 250V rated contacts
• On/Off flag

Enclosure: IP40, Transparent Dust Cover

Number Of Poles: 2

Type: General Purpose

Size: 2-1/8 IN Height X 1-9/20 IN Width X 1-3/10 IN Depth

Environmental Conditions: Storage Temperature:-40 To 100 DEG C, Vibration:2.5 G, Shock:15 G (Operational), 50 G (Non-Operational), Altitude:2000 M

Operating Temperature: -40 To 70 DEG C

Withstand Voltage: Pole To Pole:2000 VAC, Contact To Coil:2000 VAC

Contact Configuration: DPDT

Contact Rating: Inductive:30 A At 120 VAC, 15 A At 240 VAC, Resistive:10 A, 30 VDC, General Purpose:10 A At 240 VAC

Operating Cycles: Mechanical (AC/DC):Greater than 20000000/50000000, Electrical:100000 MIN

Contact Material: Silver Nickel

Insulation Voltage: UL/CSA:300 V, IEC:250 V

Connection: 8 Or 11-Pin Socket with Module Plug

Coil: 24 VDC

P/N: 700-HA32Z24
