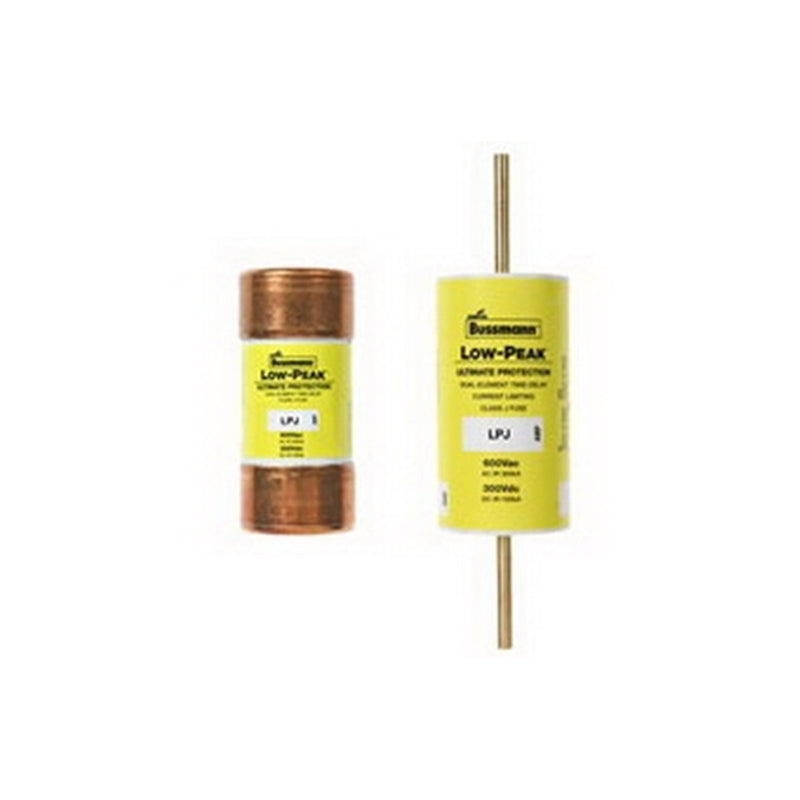

BUSSMANN | FUSE, CLASS J, 110 AMP | LPJ-110SP

Fuse, 110A, 600VAC, Class J, Dual Element Time Delay, For motor protection and various other applications.

Class J Fuses

Current-limiting

Dual element.

Time-delay

Fiberglass bodies

600Vac/300VDc

300kA IR AC, 100kA IR DC

1 to 60A: ferrule type;

70 to 600A: knife-blade type.

Functional equivalents: Mersen AJT and Littelfuse JTD

LPJ-110SP

Low-Peak™ Time Delay Fuse, Current Limiting, Amperage Rating: 110 A, Voltage Rating: 600 VAC/300 VDC, Interrupt Rating: 300000 A (RMS Symmetrical UL) (AC), 100000 A (DC), Class: J, Response Time: 10 SEC At 500 PCT Of A, Element: Dual, Type Of Indicators: Non-Indicating, Connection: Bolted Blade End X Bolted Blade End, Size: 1.63 IN Diameter X 5-3/4 IN Length, Standard: CE certified, UL listed, guide JFHR, file E56412, CSA certified, CSA-22.2 number 248.8, class 1422-02, file 53787, Application: For use with power panelboards, branch circuit breaker panelboard mains and machinery disconnects
