GOULDS | MOTOR, SUBMERSIBLE, CENTRIPRO, 5HP, 3600/460/3/60 | 4" | M50434

CentriPro M50434 - 5 HP Motor - Engineered and built for superior dependability in 4” diameter water well application.

■ Horsepower: 5 hp

■ NEW MOTOR REPLACEMENT

■ 3-Wire (Will need a control box to operate)

■ 460 volt

■ 60 Hz

■ Three Phase

■ 3450 RPM

■ Continuous Duty Rated

■ Kilowatts Rating: 3.7 KW

■ Service Factor: 1.15

■ Lead Wire (or Cable) Included

PLEASE NOTE: This item is for a motor - only - not a complete submersible pump

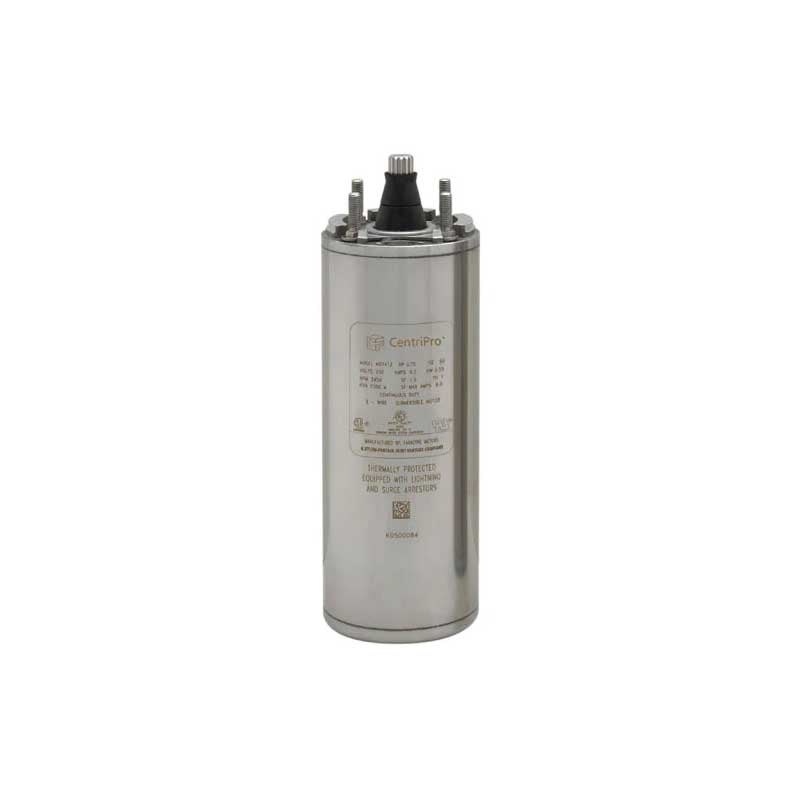

CentriPro Submersible Motor - 5 HP - M50434

These motors are built for superior dependability in 4” diameter water well application.

Motor Features:

■ Corrosion-Resistant Construction

■ Stainless Steel Splined Shaft

Basic / General Information for Motor Features

■ Three-phase Voltage 460 V 60 Hz

■ Corrosion-Resistant Construction

■ Stainless Steel Splined Shaft

■ Hermetically-Sealed Windings

■ Anti-Track Self-Healing Resin System

■ Water Lubricated Bearings

■ Filter Check Valve

■ Kingsbury-type Thrust Bearing Rated for 1500 lbs. Down-thrust

■ Pressure Equalizing Diaphragm

■ Built-in Lightning Arrestors (single-phase)

■ Removable Water-Bloc™ Lead

■ NEMA Pump Mounting Dimensions

■ UL 778 Recognized

■ CSA C22.2 #108 Certified

■ Temperature and time rating continuous in 86 °F (30 °C) water at 1/4 ft. per second flow past motor

■ Rotation: single-phase - CCW

Components & Materials of Contruction

■ Top Casting - 304 SS

■ Bottom Casting - 303 SS Over Iron

■ Stator Shell - 301 SS

■ Stator Ends - Low Carbon Steel

■ Shaft Extension - 303 SS, 17-4 SS on 5 - 10 Hp

■ Fasteners - 300 Series SS

■ Seal Cover - Sintered Bronze

■ Seal Sand Fighter™ SiC/SiC Mechanical Seal

■ Diaphragm - Nitrile Rubber

■ Diaphragm Plate - 304 SS

■ Diaphragm Spring - 302 SS

■ Diaphragm Cover - 304 SS

■ Slinger - Nitrile Rubber

■ Lead Wire (or Cable)- XLPE

■ Lead Potting - Epoxy

■ Lead Clamp - 300 Series SS

■ Filter - Delrin & Polyester
