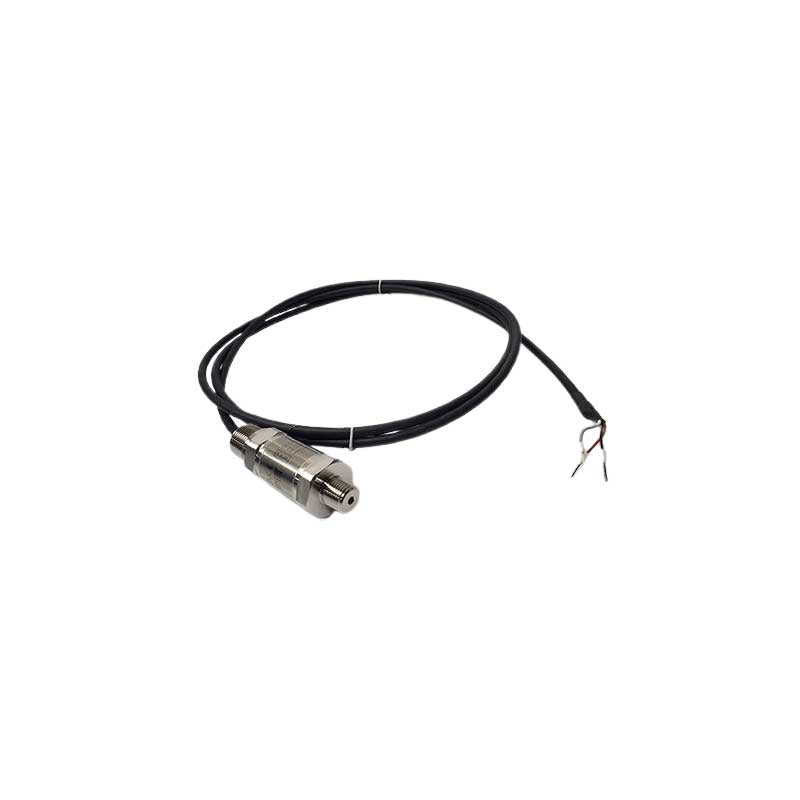

WIKA | PRESSURE TRANSDUCER, 250PSI | 52740843

This pressure transducer is an alternate to the GEMS 250 and KPSI transducers.  This pressure transducer is mainly used on Xylem / Flowtronex pump stations, but may work in other applications as well.  Please contact us for more details. This transducer  will work for any applicattion where a 0-250 PSi range with 4-20 milliamp output is called for. Also a direct replacement for Druck transducers on older Flowtronex PSI stations.

NOTE:  This transducer can be used as a direct replacement for the GEMS or KPSI transducer.

Pressure transmitter Model S-20

for general applications, superior

non-linearity: 0.5% BFSL

Pressure range: 0...250 psig

Process Connection: 1/4 NPT

permitted media temperature: -30...+100°C

Signal output: 4...20 mA, 2-wire

Power supply: DC 8...35 V

Electrical connection: 1/2 NPT conduit with cable outlet

Cable end: free cable end, with ferrules

Performance Level: without

Cable length: 6 ft

pin assignment el. connection: U+=RD, U-=BK, shield=GY

shielding: connected

Approvals: cULus

Overpressure safety: 2 times

Calibration Temperature: 15 ... 25 °C

shock and vibration resistance: 100 g shock, 10 g vibration

Test protocol: with test protocol

Specifications: according to WIKA data sheet PE 81.61

customer specific: WIKA standard - specification according to data sheet

Import documentation CIS-States: without
